Bare Conductor
Your Location: HOME > PRODUCTS > Bare Conductor

100mm2 AAAC OAK 6000 series All Alloy Alloy Conductor

The product is widely used in the overhead power distribution system of our country,and it is one of  the main products for forming electrified wire network.

    Application: overhead
    Voltage: High Voltage
    Conductor Material: Aluminum
    MOQ: 1 kilometer
  • Quick Details

    Place of Origin:China henan
    Brand Name:Sanhe
    Model Number:AAAC
    MOQ:1 kilometer
    Certificate:ISO9001
    Voltage:High Voltage
    Application:overhead
    Standard:ASTM BS
    Insulation Material:none
    Package:Wooden Drum
    Port:Qingdao /Shanghai / Tianjin
    Conductor Material: Aluminum

    Overview

    1.Application

    The product is widely used in the overhead power distribution system of our country,and it is one of  the main products for forming electrified wire network.

    2.Material

    Aluminum power cable is main 6000,8000 series Aluminum-alloy conductor material, using a special type of roll forming line twisted power cables production process new materials and advanced technologies such as annealing inventions.

    3.Standard

    ASTM B399 BS3242 BS EN 50182:2001 DIN48201 IEC61089

    4.Characteristics

    AAAC (All Aluminum Alloy Conductor) referred to have higher strength but lower conductivity than pure aluminum.being lighter, alloy conductors can sometimes be used to advantage in place of the more conventional ACSR;having lower breaking loads than the latter,their use becomes particularly favourable.

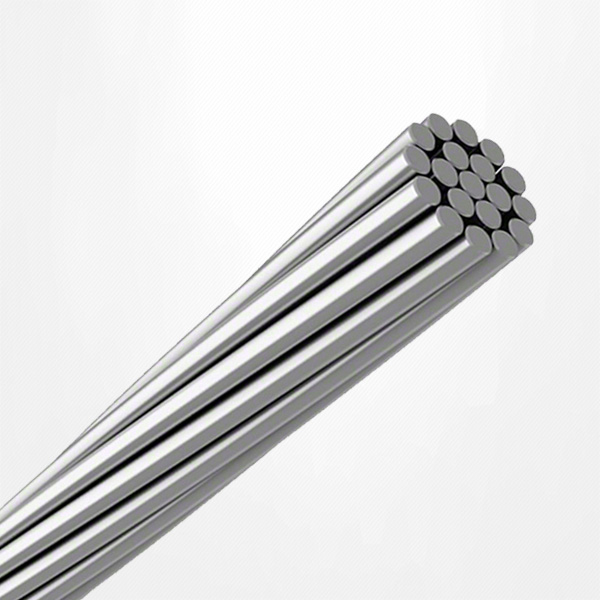

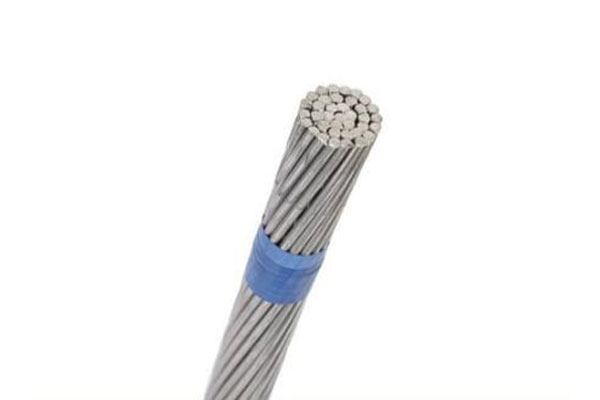

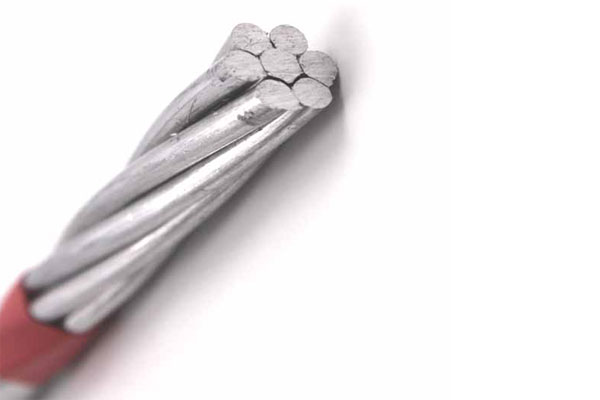

    Product Photos

    100mm2 AAAC OAK 6000 series All Alloy Alloy Conductor

    100mm2 AAAC OAK 6000 series All Alloy Alloy Conductor

    100mm2 AAAC OAK 6000 series All Alloy Alloy Conductor

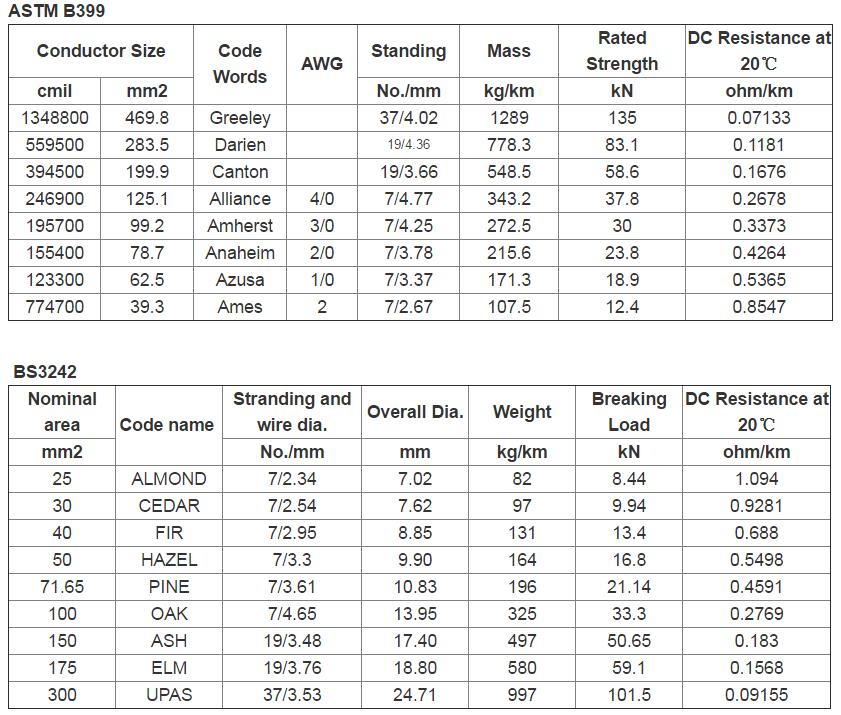

  • 100mm2 AAAC OAK 6000 series All Alloy Alloy Conductor parameter

  • Packing type:

    Wooden drum (fumigation) ,wooden-iron drum (fumigation) ,coil

    Cable length in each drum: 500m/1000m or as per actual cable length requirements.

    Package size:

    According to cable’s overall diameter or your requirements .

    in order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!

    Loading Port:

    Qingdao,Shanghai or other ports as per your requests.

    Trade Terms:

    FOB/C&F/CIF quotation are all available

  • Quality

    1, There is a professional design engineer team, before manufacturing, all of the product drawing will be approved by CSBTS (State Bureau of Quality Technical Supervision), and then the cable could be produced only if qualified.

    2, To ensure the raw materials quality, all the copper and aluminium are special-used for cable with the Inspection Certificates. The raw material is inspected when entering factory, and only the qualified material could be put in storage and used for production.

    3, To ensure the product quality, there is a professional high level quality laboratory, most of the key technology will be checked by high precision instrument.

    Quality
