Copper Cable
Your Location: HOME > PRODUCTS > Copper Cable

Control cable Copper cable KVV KVVR KVVP KVV22

    Application: Conctruction,Communication network,Industrial automation
    Voltage: 300-1000KV
    Conductor Material: Copper
    MOQ: 3 Kilometer
  • Quick Details

    Place of Origin:Chinese Henan
    Brand Name:Sanhe
    Model Number:
    MOQ:3 Kilometer
    Certificate:ISO9001
    Voltage:300-1000KV
    Application:Conctruction,Communication network,Industrial automation
    Standard:IEC,GB/T,ASTM,UL
    Insulation Material:PVC,XLPE,PE
    Package:Wooden Drum or coil
    Port:Qingdao/Shanghai/Tianjin
    Conductor Material:Copper

    Overview

    BRIEF INTRODUCTION FOR CONTROL CABLE

      . 1 PVC insulated & sheath control cable is suitable for connecting wires between electric eqmpments in controlling,monitoring loop and protecting circuit at rated voltage up to and including 600/ 1000V(A. C. ).The product has not only excellent characteristics in electric and mechanical purpose but also in performances of chemical corrosion resistance,heat--aging, environmental stress and flame-retardant.The product has simple construction and convenient to use and could be laid with no restriction of different levels. Our product of PVC insulated and sheathed control cable can be manufactured according to the Chinese Standard GB9330-88,which was compiled with reference to IEC227,IEC502 and the Standards of Germany,America,Japan and U . S . S . R for control cable

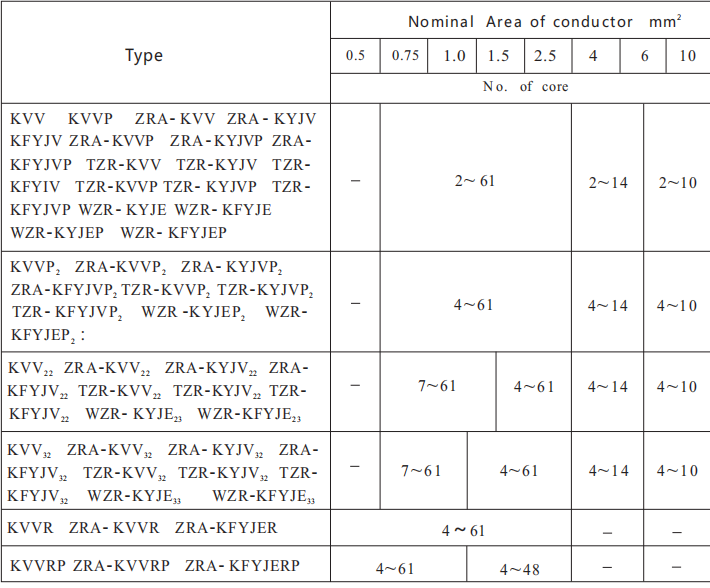

     CONTROL CABLE SPECIFICATIONS

    Control cable specifications.png

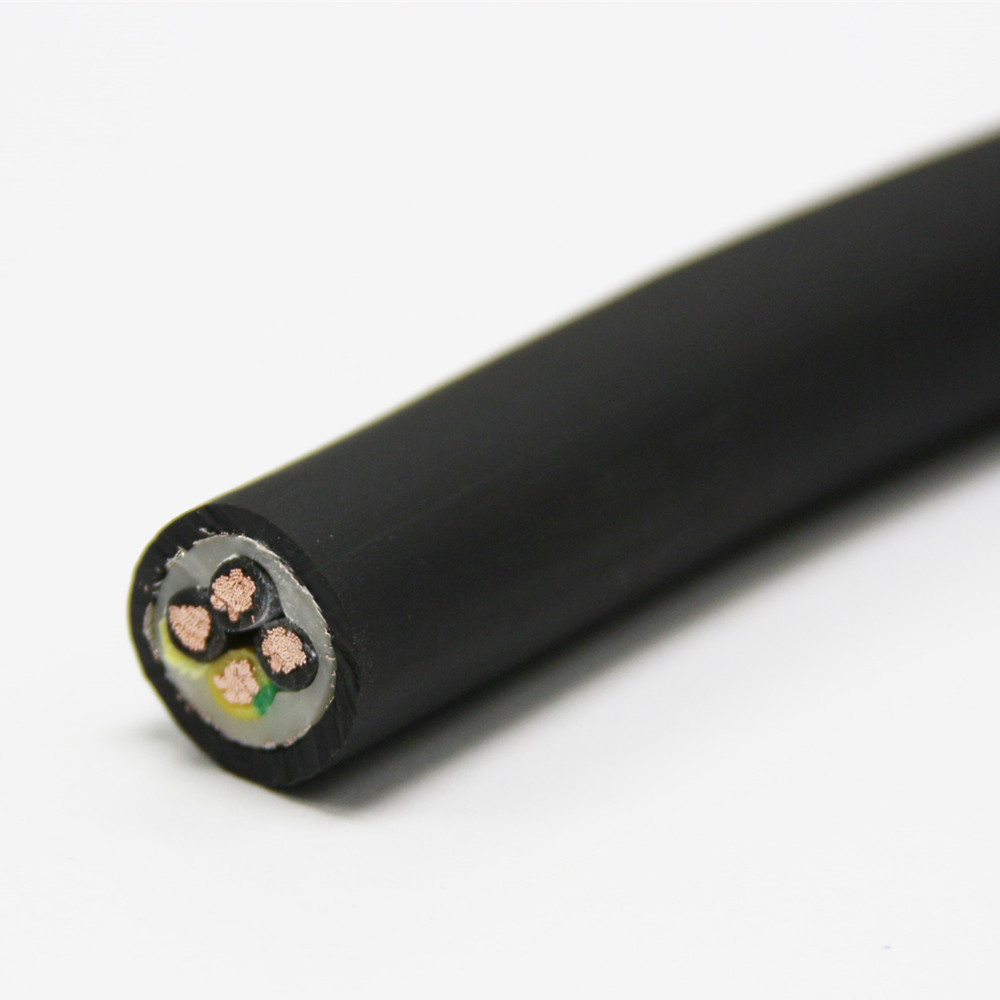

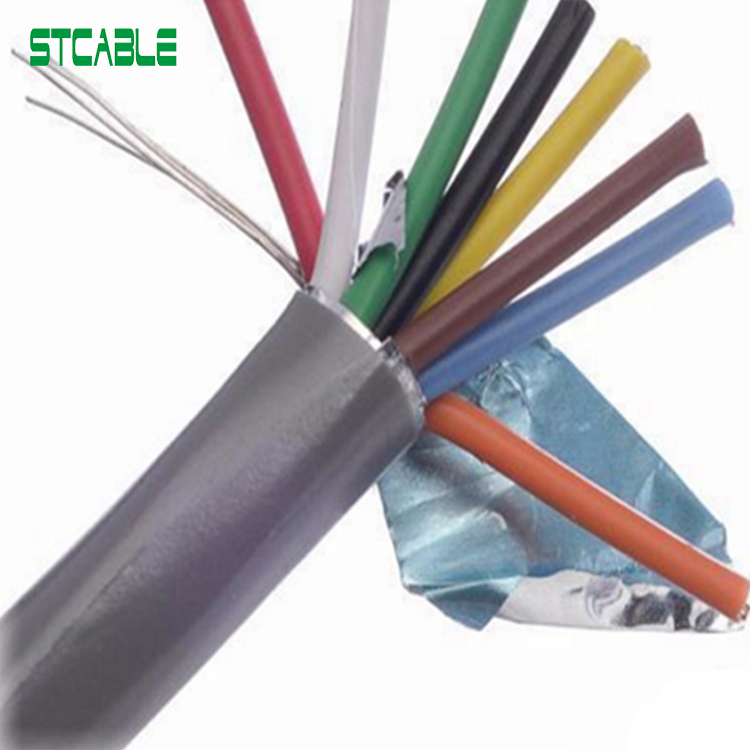

    CABLE IMAGE

    Control cable (2).jpg

    control cable4.jpg

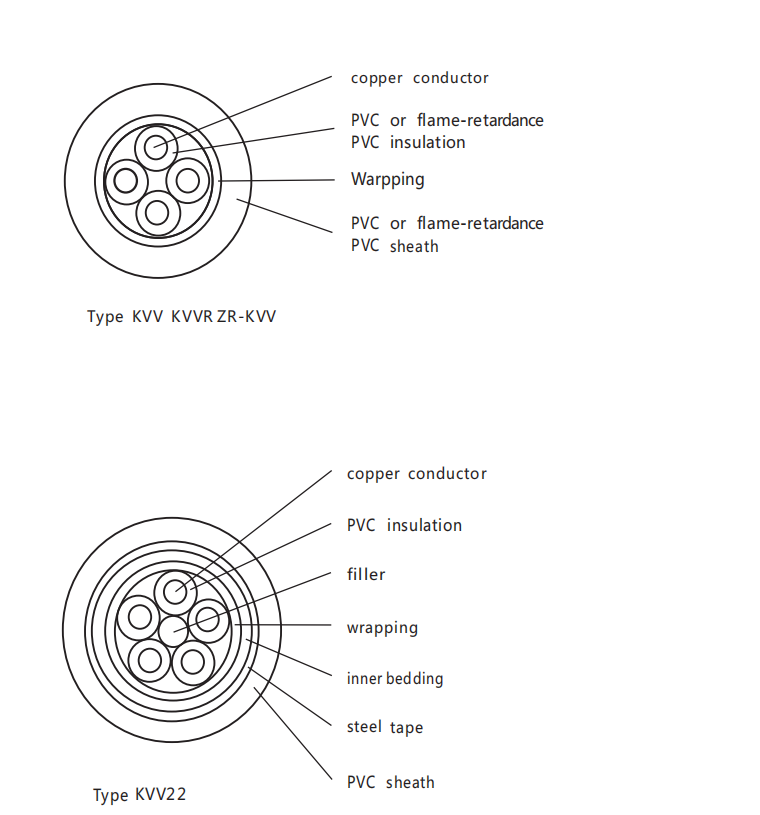

    CROSS-SECTIONAL DRAWINGS

    Cross-sectional drawings.png

    For specific details, please contact us or email mike @zzshcable.

    Product Photos

    Control cable Copper cable KVV KVVR KVVP KVV22

    Control cable Copper cable KVV KVVR KVVP KVV22

    Control cable Copper cable KVV KVVR KVVP KVV22

  • Control cable Copper cable KVV KVVR KVVP KVV22 parameter

  • Cable transportation.jpg

    All cables will be packed in rool or different sizes wooden reels according to their outside diameter and net weight. 1. We use fumigated & treated timber wooden reel to package cables. 2. Frequently-used reel sizes: 0.7*0.7*0.7m, 1.1*1.1*0.8m, 1.8*1.8*1.1m, 2.2*2.2*1.8m, or as customer's reauests 3. Wooden plate sealed. 4. 72 pcs of 0.7m wooden reel can be put in one 20FCL. 28 pcs of 1.1m wooden reel can be put in one 20FCL. 6 pcs of 1.8m wooden reel can be put

  • Quality

    1, There is a professional design engineer team, before manufacturing, all of the product drawing will be approved by CSBTS (State Bureau of Quality Technical Supervision), and then the cable could be produced only if qualified.

    2, To ensure the raw materials quality, all the copper and aluminium are special-used for cable with the Inspection Certificates. The raw material is inspected when entering factory, and only the qualified material could be put in storage and used for production.

    3, To ensure the product quality, there is a professional high level quality laboratory, most of the key technology will be checked by high precision instrument.

    Quality
