Concentric Cable
Your Location: HOME > PRODUCTS > Concentric Cable

Transmission line PVC Insulation Single or Multi-core XLPE Concentric Cable 0.6/1kV

Primarily uesd for overhead service applications such as Street lighting, outdoor lihgting,and temporary service for construction.

    Application: Low Voltage
    Voltage: 600V/1000V
    Conductor Material: Aluminum
    MOQ: 1 kilometer
I understand, click inquiry

  • Quick Details

    Place of Origin:China(Mainland), Henan
    Brand Name:Zhengzhou Sanhe Cable
    Model Number:Concentric Cable
    MOQ:1 kilometer
    Certificate:ISO9001
    Voltage:600V/1000V
    Application:Low Voltage
    Standard:KS04-1022
    Insulation Material:XLPE/PVC/PE
    Package:Wooden Drums, Iron Wooden Drums, Iron Drums, Customized
    Port:Qingdao /Shanghai / Tianjin
    Conductor Material:Aluminum

    Overview

    1.Applications

    Overhead Transmission Concentric cable

    Primarily uesd for overhead service applications such as Street lighting, outdoor lihgting,and temporary service for construction.

    2.Material

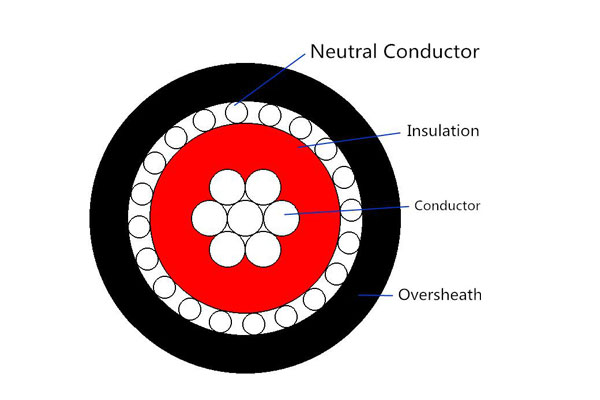

    Concntric cable main contain Phase conductor,Neutral Messenger...

    Conductor: Aluminum

    Insualted: PVC

    Sheath:PVC

    Phase: All Aluminum Conductor(PVC Insulated)

    Neutral:All Aluminum Conducotr (PVC Insulated)

    3.Standard

    Kenya Standard (KS 04-1022)

    With the KS 04-1022 Standard, The phase conductor,the neutral conducotr shall be Aluminum Wire,

    The Insulation of phase conducotr shall be Red PVC Compound,The Oversheath shall be an extruded layer of black PVC.All of the characteristics of cables shall comply with table.

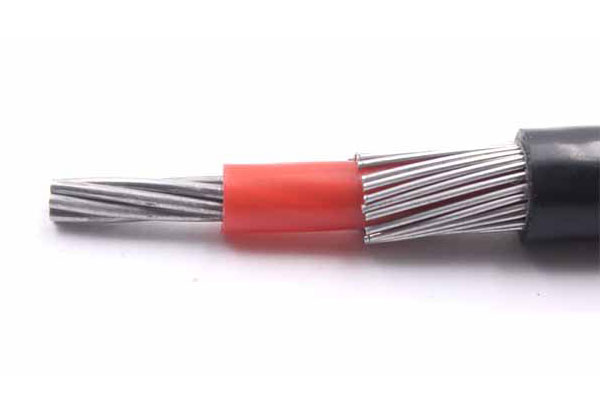

    Product Photos

    Transmission line PVC Insulation Single or Multi-core XLPE Concentric Cable 0.6/1kV

    Transmission line PVC Insulation Single or Multi-core XLPE Concentric Cable 0.6/1kV

    Transmission line PVC Insulation Single or Multi-core XLPE Concentric Cable 0.6/1kV

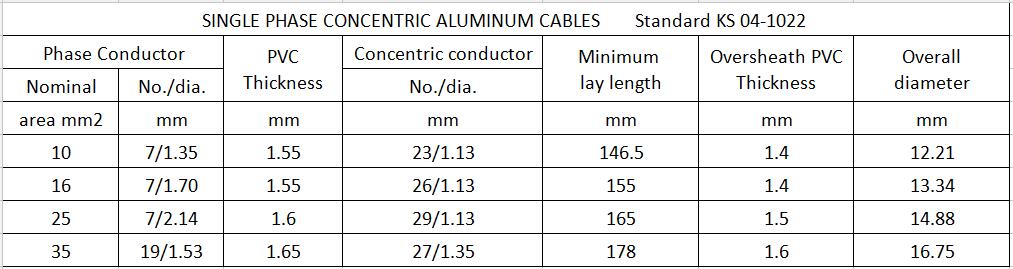

  • Transmission line PVC Insulation Single or Multi-core XLPE Concentric Cable 0.6/1kV parameter

  • Packing type:

    Wooden drum (fumigation) ,wooden-iron drum (fumigation) ,coil

    Cable length in each drum: 500m/1000m or as per actual cable length requirements.

    Package size:

    According to cable’s overall diameter or your requirements .

    in order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!

    Loading Port:

    Qingdao,Shanghai or other ports as per your requests.

    Trade Terms:

    FOB/C&F/CIF quotation are all available

  • Quality

    1, There is a professional design engineer team, before manufacturing, all of the product drawing will be approved by CSBTS (State Bureau of Quality Technical Supervision), and then the cable could be produced only if qualified.

    2, To ensure the raw materials quality, all the copper and aluminium are special-used for cable with the Inspection Certificates. The raw material is inspected when entering factory, and only the qualified material could be put in storage and used for production.

    3, To ensure the product quality, there is a professional high level quality laboratory, most of the key technology will be checked by high precision instrument.
