Galvanized steel wire

Smooth galvanized steel wire stay wire guy wire GSW

Brief of Description: Galvanized iron wire, also known as galvanized steel wire , is most used in binding of construction materials or weaving wire mesh products. According to the difference of zinc coating process can be divided into: electro galvanized steel wire and hot-dipped galvanized steel wire. Application: Galvanized steel wire is used for ACSR Core , pulling pole ,overhead conductor,Messenger wire ,Static wire,Guy wire,Guide rail cable Standards: ASTM A-363 Zinc-Coated (Galvanized) Ste

    Application: overhead/ Construction
    Voltage: NONE
    Conductor Material: steel
    MOQ: 3 kilometer
  • Quick Details

    Place of Origin:China(Mainland), Henan
    Brand Name:Sanhe
    Model Number:GSW
    MOQ:3 kilometer
    Certificate:ISO9001
    Voltage:NONE
    Application:overhead/ Construction
    Standard:ASTM
    Insulation Material:NONE
    Package:Wooden Drum
    Port:Qingdao /Shanghai / Tianjin
    Conductor Material:steel

    Overview

    Brief of Description:

    Galvanized iron wire, also known as galvanized steel wire, is most used in binding of construction materials or weaving wire mesh products. According to the difference of zinc coating process can be divided into: electro galvanized steel wire and hot-dipped galvanized steel wire.

    Application :

    Galvanized steel wire is used for ACSR  Core , pulling pole ,overhead   conductor, Messenger wire ,Static wire,Guy wire,Guide rail cable

    Standards:

    ASTM A-363 Zinc-Coated (Galvanized) Steel Overhead Ground Wire Strand

    ASTM A-475 Zinc-Coated Steel Wire Strand

    ASTM A-925 -5 % Aluminum-Mischmetal Alloy-Coated Steel Overhead Ground Wire Strand

    ASTM A-855 Zinc-5 % Aluminum-Mischmetal Alloy-Coated Steel Wire Strand

    ASTM A-640 Zinc-Coated Steel Strand for Messenger Support of Figure 8 Cable.

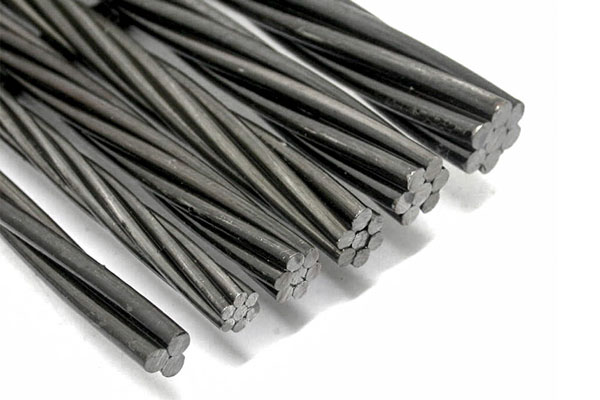

    Product Photos

    Smooth galvanized steel wire stay wire guy wire GSW

    Smooth galvanized steel wire stay wire guy wire GSW

    Smooth galvanized steel wire stay wire guy wire GSW

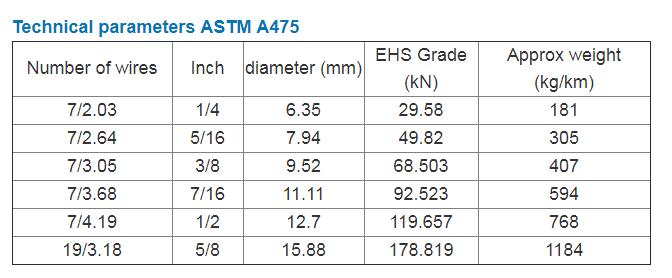

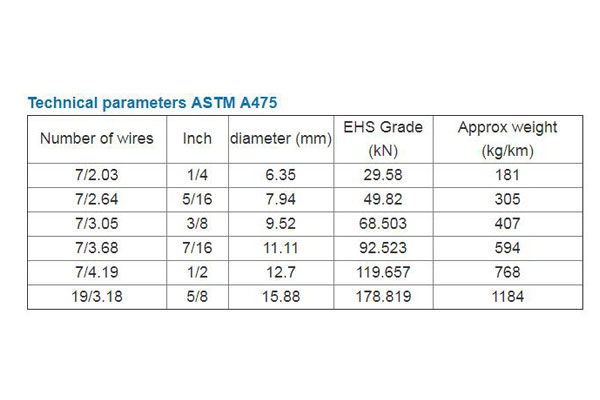

  • Smooth galvanized steel wire stay wire guy wire GSW parameter

  • Quality

    1, There is a professional design engineer team, before manufacturing, all of the product drawing will be approved by CSBTS (State Bureau of Quality Technical Supervision), and then the cable could be produced only if qualified.

    2, To ensure the raw materials quality, all the copper and aluminium are special-used for cable with the Inspection Certificates. The raw material is inspected when entering factory, and only the qualified material could be put in storage and used for production.

    3, To ensure the product quality, there is a professional high level quality laboratory, most of the key technology will be checked by high precision instrument.

    Quality
